型号
Ltem NO
|

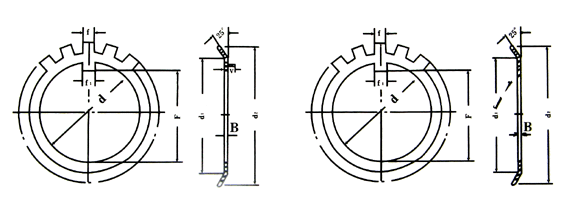

基本尺寸 Dimensions in |
重量
W.t（100/kg）
|
| d |
d1 |
d2 |
F |
B |
f1 |
f |
W00
W01
W02
|
0.406
0.484
0.601
|
0.625
0.719
0.813
|
0.875
1.016
1.156
|
0.334
0.412
0.529
|
0.032
0.032
0.032
|
0.120
0.120
0.120
|
0.120
0.120
0.120
|
0.20
0.20
0.30
|
W03
W04
W05
|
0.679
0.801
0.989
|
0.938
1.125
1.281
|
1.328
1.531
1.719
|
0.607
0.729
0.909
|
0.032
0.032
0.040
|
0.120
0.176
0.176
|
0.120
0.166
0.166
|
0.50
0.70
0.80
|
W06
W07
W08
|
1.193
1.396
1.583
|
1.500
1.813
2.000
|
1.922
2.250
2.469
|
1.093
1.296
1.475
|
0.040
0.040
0.048
|
0.176
0.176
0.290
|
0.166
0.166
0.234
|
0.80
1.40
1.90
|
W09
W010
W011
|
1.792
1.992
2.182
|
2.281
2.438
2.656
|
2.734
2.922
3.109
|
1.684
1.884
2.069
|
0.048
0.048
0.053
|
0.290
0.290
0.290
|
0.234
0.234
0.234
|
2.10
2.10
2.20
|
W012
W013
W014
|
2.400
2.588
2.791
|
2.844
3.063
3.313
|
3.344
3.578
3.828
|
2.267
2.455
2.658
|
0.053
0.053
0.053
|
0.290
0.290
0.290
|
0.234
0.234
0.234
|
2.50
27.0
3.20
|
W015
W016
W017
|
2.973
3.177
3.395
|
3.563
3.844
4.031
|
4.109
4.375
4.625
|
2.831
3.305
3.253
|
0.062
0.062
0.062
|
0.290
0.353
0.353
|
0.328
0.328
0.328
|
4.80
5.30
5.70 |
W018
W019
WO20
W021
|
3.582
3.800
3.988
4.192
|
4.281
4.563
4.813
5.000
|
4.938
5.219
5.500
5.703
|
3.418
3.636
3.809
4.013
|
0.084
0.084
0.084
0.084
|
0.353
0.353
0.353
0.353
|
0.328
0.328
0.328
0.328
|
7.00
8.20
9.40
10.00
|
|
型号
Ltem NO
|
|
重量
W.t（100/kg）
|
| d |
d1 |
d2 |
F |
B |
f1 |
f |
W022
W22
|
4.395
4.395
|
4.921
5.281
|
5.688
6.063
|
4.185
4.185
|
0.115
0.115
|
0.35
0.353
|
0.390
0.390
|
9.40
15.7
|
W024
W24
|
4.801
4.801
|
5.333
5.688
|
6.118
6.469
|
4.591
4.591
|
0.115
0.115
|
0.350
0.353
|
0.390
0.390
|
10.40
17.00
|
W026
W26
|
5.191
5.191
|
5.723
6.188
|
6.625
7.031
|
4.961
4.961
|
0.115
0.115
|
0.469
0.435
|
0.390
0.520
|
12.60
22.00
|
W028
W28
|
5.582
5.582
|
6.129
6.531
|
7.094
7.438
|
5.352
5.352
|
0.115
0.115
|
0.594
0.590
|
0.390
0.520
|
15.40
22.00
|
W030
W30
|
5.983
5.983
|
6.078
7.063
|
7.719
8.063
|
5.722
5.722
|
0.115
0.146
|
0.594
0.590
|
0.520
0.520
|
19.00
32.80
|
W032
W32
|
6.389
6.389
|
7.114
7.438
|
8.156
8.438
|
6.128
6.128
|
0.115
0.146
|
0.594
0.590
|
0.520
0.520
|
20.00
33.50
|
W034
W34
|
6.764
6.764
|
7.508
8.031
|
8.594
9.063
|
6.503
6.503
|
0.115
0.146
|
0.719
0.715
|
0.520
0.520
|
23.20
41.70
|
W036
W36
|
7.171
7.171
|
7.809
8.375
|
9.000
9.438
|
6.910
6.910
|
0.115
0.146
|
0.719
0.715
|
0.520
0.645
|
23.80
43.20
|
W038
W38
|
7.577
7.577
|
8.290
8.781
|
9.438
9.857
|
7.316
7.316
|
0.115
0.146
|
0.719
0.715
|
0.520
0.645
|
24.60
45.80
|
W040
W40
|
7.982
7.982
|
8.774
9.156
|
9.969
10.313
|
7.721
7.721
|
0.115
0.146
|
0.844
0.840
|
0.645
0.645
|
29.40
47.00
|
W044
W44
|
8.701
8.701
|
9.570
9.875
|
10.406
11.438
|
8.327
8.327
|
0.115
0.146
|
0.945
0.940
|
0.770
0.878
|
30.00
60.00
|
|
