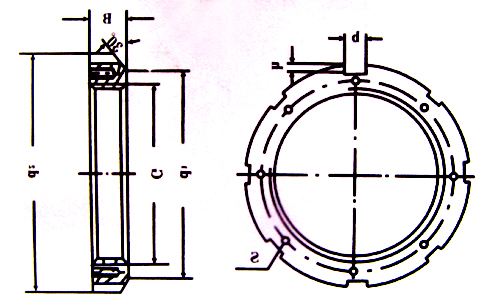

锁紧螺母　LOCK NUT

　　螺　纹 　G=M10×0.75～M120×2

　　Screw thread 　G=M10×0.75～M120×2

型号
Ltem NO

基本尺寸 　　Dimensions　　 mm

重量
W.t（kg）

锁紧垫圈
Lock washer

No
G d1 d2 B b h
KM0
KM1
KM2
KM3
KM4
M10×0.75
M12×1
M15×1
M17×1
M20×1
13.5
17
21
24
26
18
22
25
28
32
4
4
5
5
6
3
3
4
4
4
2
2
2
2
2
0.006
0.008
0.012
0.014
0.020
MB0
MB1
MB2
MB3
MB4
KM0
KM1
KM2
KM3
KM4
KM/22
KM5
KM/28
KM6
KM/32
M22×1
M25×1.5
M28×1.5
M30×1.5
M32×1.5
28
32
36
38
40
34
38
42
45
48
6
7
7
7
8
4
5
5
5
5
2
2
2
2
2
0.022
0.028
0.032
0.038
0.042
MB/22
MB5
MB/28
MB6
MB/32
KM/22
KM5
KM/28
KM6
KM/32
KM7
KM8
KM9
KM10
KM11
M35×1.5
M40×1.5
M45×1.5
M50×1.5
M55×2
44
50
56
61
67
52
58
65
70
75
8
9
10
11
11
5
6
6
6
7
2
2.5
2.5
2.5
3
0.058
0.078
0.11
0.14
0.15
MB7
MB8
MB9
MB10
MB11
KM7
KM8
KM9
KM10
KM11
KM12
KM13
KM14
KM15
KM16
M60×2
M65×2
M70×2
M75×2
M80×2
73
79
85
90
95
80
85
92
98
105
11
12
12
13
15
7
7
8
8
8
3
3
3.5
3.5
3.5
0.16
0.19
0.22
0.27
0.36
MB12
MB13
MB14
MB15
MB16
KM12
KM13
KM14
KM15
KM16
KM17
KM18
KM19
KM20
M85×2
M90×2
M95×2
M100×2
102
108
113
120
110
120
125
130
16
16
17
18
8
10
10
10
3.5
4
4
4
0.42
0.51
0.58
0.68
MB17
MB18
MB19
MB20
KM17
KM18
KM19
KM20

KM21
KM22
KM23

M105×2
M110×2
M115×2

126
133
137

140
145
150

18
19
19

12
12
12

5
5
5

0.81
0.89
0.91

MB21
MB22
MB23

KM21
KM22
KM23

KML24
KM24

M120×2
M120×2

135
138

145
155

20
20

12
12

5
5

0.69
0.98

MBL24
MB24

KML24
KM24
