退卸套 QUIT SLEEVE　

　　内　 径 　d1=35～80mm

　　Inside diamet　d1=35～80mm

型号
Ltem NO

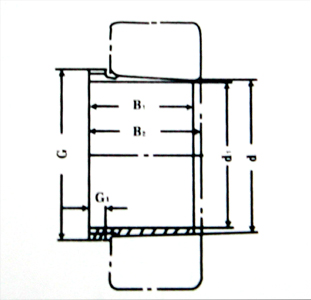

基本尺寸 　　Dimensions　　 mm

重量
W.t（kg）

锁紧螺母
Lock nut

No
d1 d B1 B2 G G1

AH208
AH308
AH2308

35
35
35

40
40
40

25
29
40

27
32
43

M45×1.5
M45×1.5
M45×1.5

6
6
7

0.08
0.09
0.13

KM9
KM9
KM9

AH208
AH308
AH2308

AH209
AH309
AH2309

40
40
40

45
45
45

26
31
44

29
34
47

M50×1.5
M50×1.5
M50×1.5

6
6
7

0.10
0.12
0.16

KM10
KM10
KM10

AH209
AH309
AH2309

AH210
AH310
AHX2310

45
45
45

50
50
50

28
35
50

31
38
53

M55×2
M55×2
M55×2

7
7
9

0.12
0.13
0.19

KM11
KM11
KM11

AH210
AH310
AHX2310

AH211
AH311
AHX2311

50
50
50

55
55
55

29
37
54

32
40
57

M60×2
M60×2
M60×2

7
7
9

0.16
0.17
0.26

KM12
KM12
KM12

HE3038
HE3138
HE2338

AH212
AH312
AHX2312

55
55
55

60
60
60

32
40
58

35
43
61

M65×2
M65×2
M65×2

8
8
11

0.17
0.19
0.30

KM13
KM13
KM13

AH212
AH312
AHX2312

AH213
AH312
AHX2313

60
60
60

65
65
65

32.5
42
61

36
45
64

M75×2
M75×2
M75×2

8
8
12

0.24
0.26
0.39

KM15
KM15
KM15

AH213
AH312
AHX2313

AH214
AH314
AHX2314

65
65
65

70
70
70

33.5
43
64

37
47
68

M80×2
M80×2
M80×2

8
8
12

0.26
0.28
0.45

KM16
KM16
KM16

AH214
AH314
AHX2314

AH215
AH315
AHX2315

70
70
70

75
75
75

34.5
45
68

38
49
72

M85×2
M85×2
M85×2

8
8
12

0.28
0.31
0.53

KM17
KM17
KM17

AH215
AH315
AHX2315

AH216
AH316
AHX2316

75
75
75

80
80
80

35.5
48
71

39
52
75

M90×2
M90×2
M90×2

8
8
12

0.31
0.37
0.57

KM18
KM18
KM18

AH216
AH316
AHX2316

AH217
AH317
AHX2317

80
80
80

85
85
85

38.5
52
74

42
56
78

M95×2
M95×2
M95×2

9
9
13

0.36
0.43
0.65

KM19
KM19
KM19

AH217
AH317
AHX2317
